Rj45 Ethernet to Rs232 Ttl Dönüştürücü Ip Modül Usr-Tcp232-T2
RS232 ile haberleşen cihazlarınızı internet üzerinden, mesafeye bağlı olmadan birbirine bağlayabilirsiniz.
RS232 ile haberleşen cihazlarınızı internet üzerinden, mesafeye bağlı olmadan birbirine bağlayabilirsiniz.
Özellikleri:
- Otomatik data hızı tespiti 10/100M
- AUTO MDI/MDIX, Cross yada düz kablo bağlantısına uygun.
- Bilgi aktarım hızı - Baud rate 600 ~ 460800 bps.
- TCP Server, TCP Client, UDP client , UDP server.
- Virtual COM olarak çalışabilirsiniz
- TCP bağlantı kesildiğinde otomatik bağlanma
- 3.3V ve 5V iki ayrı besleme imkanı

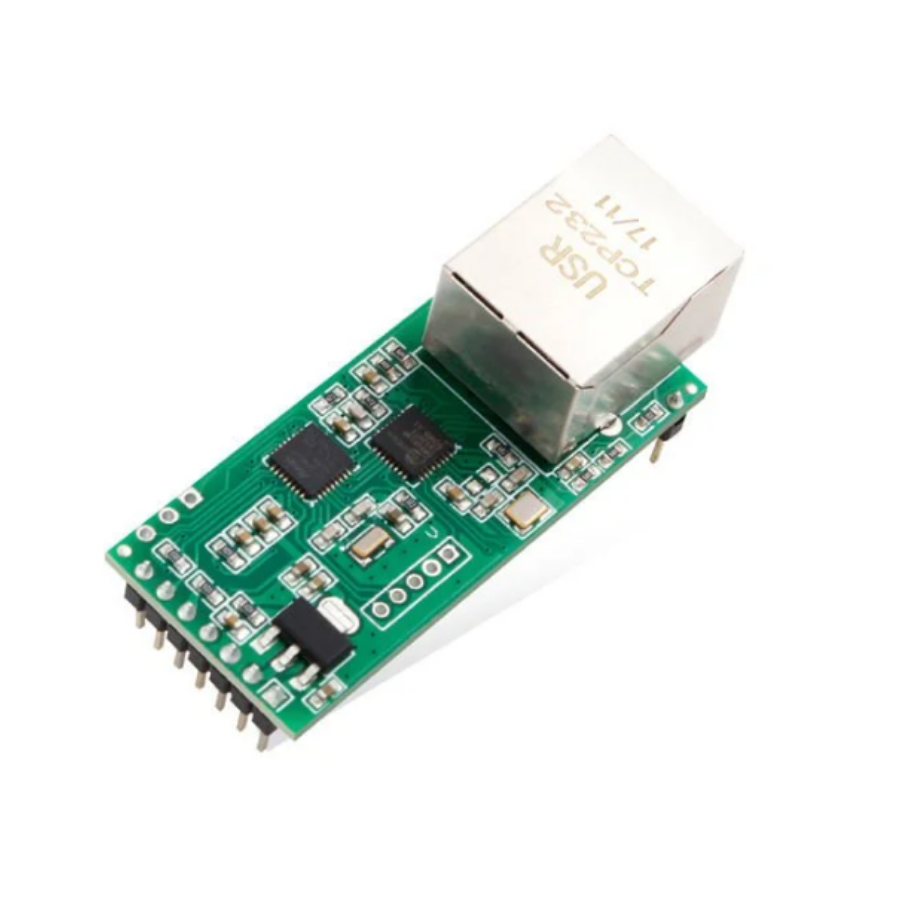

- USR-TCP232-T2 is a tiny size serial Ethernet module whichcan realize data bidirectional transparent transmission between TTL and RJ45Port. It can also be applied in RS232/ RS485 by level shift circuit.USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fastspeed and high efficiency.
- Features :
- Support DHCP, automatically obtain an IP address and queryIP address through serial setting protocol
- Support DNS function
- Set parameters through webpage and serial AT command
- Upgrade firmware via network
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 600 bps to 460.8 Kbps, Check bitof None,Odd,Even,Mark and Space
- Work mode: TCP Server, TCP Client, UDP Client, UDP Server,HTTPD Client
- Support virtual serial port and provide correspondingsoftware USR-VCOM
- Heartbeat package mechanism to ensure connection isreliable, put an end to dead link
- User-defined registration package mechanism, checkconnection status and use as custom packet header
- Under TCP Server mode, Client number ranges from 1 to 16;default number is 4
- The global unique MAC address bought from IEEE, user candefine MAC address
- Restore factory default
- Across the gateway, switches, routers
- Can work in LAN, also can work in the Internet (external network)
- Provide PC TCP/IP socket programming example such asVB,C++,Delphi,Android and IOS Support customization
- Parameter :
- Input Voltage: DC 3.3V/5V
- Current: 150mA
- Size: 55 x 22.6 x 23.1 mm
- Operating Temp: -25 ~75°C
- Storage Temp: -40 ~ 105°C, 5 ~ 95% RH
- Interface: TTL UART
