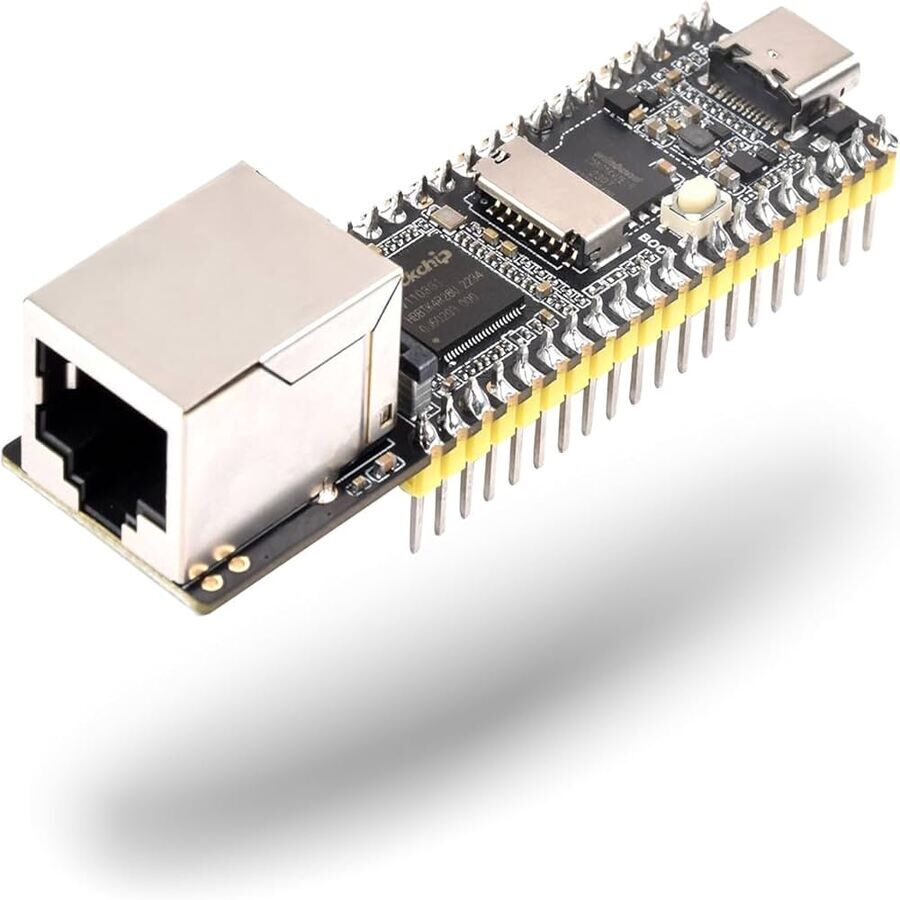

Luckfox Lyra Plus M Lehimli RK3506G2 Geliştirme Kartı

Luckfox Lyra Plus M Lehimli RK3506G2 Geliştirme Kartı

Yorum Yap / Yorumları Oku
Kategori
Geliştirme Kartları
Stok Kodu
451651PDP
Stok Durumu
*190,14 TL den başlayan taksitlerle!
FİYAT BİLGİSİ
1.440,00 TL + KDV
KDV DAHİL FİYATI
1.728,00 TL
Sepete Ekle
HIZLI SATIN AL
Ürün Banner 1 Resim Alt Etiketi
Ürün Bilgisi
Ürün Bilgisi

Luckfox Lyra Plus RK3506G2 Geliştirme Kartı

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, front view Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, features
Specifications
Processor Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory 128MB DDR3L
USB USB OTG2.0 × 2
Display MIPI DSI 2-lane
GPIO 24 × Rockchip Matrix IO pins
Ethernet port 10/100M Ethernet controller
Default Storage SPI NAND FLASH (256MB)
Version options
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, version options
Kit Selection
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, Kit Selection
Highly integrated and powerful performance
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, adopts RK3506G2 chip
  • Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
  • Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
  • Built-in 128MB DDR3L for multi-core applications
  • The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
  • Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Easier to develop

Integrates TF card slot, DSI interface, USB connector and Ethernet port

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, integrates TF card slot, DSI interface and USB connector and Ethernet port
MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, onboard MIPI DSI 2-lane interface

* for reference only, please refer to the Package Content for the detailed part list.
Supports up to 1280 × 800 @ 60Hz resolution.

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, adopts Rockchip Matrix IO design
SLC NAND FLASH

onboard 256MB SLC NAND FLASH, provides a better user experience

Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, onboard 256MB SLC NAND FLASH
Suitable for more application examples
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, suitable for more application examples



Pin definition
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, pin definition



What's On Board
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, onboard components
  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. BOOT button
    Press it when powering on to enter download mode
  4. RESET button
  5. USB MX1.25 4P connector
    can be converted to USB Type-A port via an adapter cable
  6. TF card slot

  1. RK3506G2
    Multi-core heterogeneous SoC with built-in Triple-core ARM Cortex-A7 + ARM Cortex-M0
  2. DSI display interface
    MIPI DSI 2-lane
  3. RJ45 Ethernet port
  4. W25N02KV
    256MB SLC NAND FLASH
  5. CH182H2
    100 Mbps Ethernet PHY chip
Product Show
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, product show

outline dimensions
Luckfox Lyra Plus RK3506G2 Linux Micro Development Board, outline dimensions
