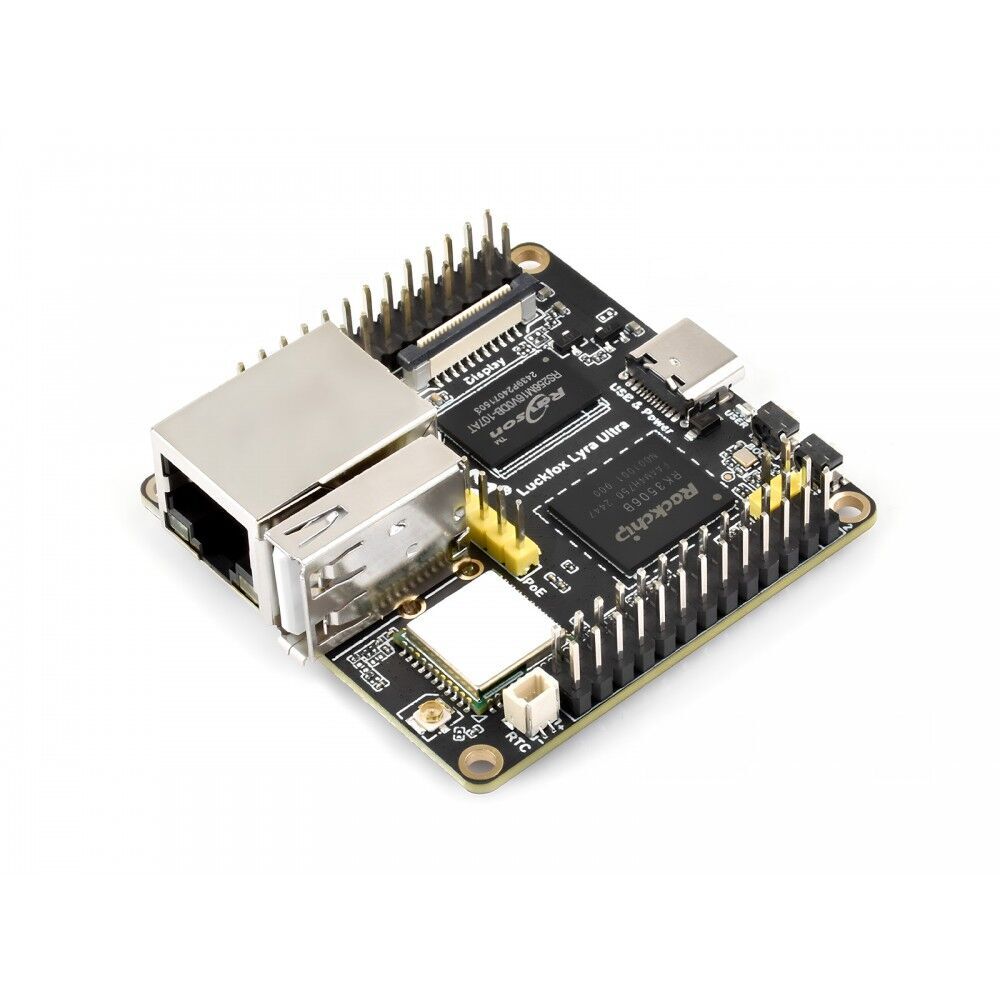

Luckfox Lyra Ultra W RK3506B Wifi

Luckfox Lyra Ultra W RK3506B Wifi

Yorum Yap / Yorumları Oku
Kategori
Geliştirme Kartları
Stok Kodu
45120GH
Stok Durumu
*356,51 TL den başlayan taksitlerle!
FİYAT BİLGİSİ
2.700,00 TL + KDV
KDV DAHİL FİYATI
3.240,00 TL
Sepete Ekle
HIZLI SATIN AL
Ürün Banner 1 Resim Alt Etiketi
Ürün Bilgisi
Ürün Bilgisi
Luckfox Lyra RK3506B Linux Micro Development Board, front view Luckfox Lyra RK3506B Linux Micro Development Board, features
Development Board Versions
Luckfox Lyra Ultra series, version options
Specifications
Model Luckfox Lyra Ultra Luckfox Lyra Ultra W
Processor Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory 512MB DDR3L
USB USB OTG2.0 × 2 Original USB OTG2.0 × 1,
Extended USB HOST2.0 × 2 via HUB
Display MIPI DSI 2-lane
GPIO 29 × Rockchip Matrix IO pins + 4 × GPIO pins
Ethernet port 10/100M Ethernet port
Default Storage 8GB eMMC
Wireless - Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE
LCD Kit Selection

Optional for 10.1-DSI-TOUCH-A kit

Luckfox Lyra RK3506B Linux Micro Development Board, LCD Kit Selection
LCD Kit connection example
Luckfox Lyra Ultra series, LCD Kit connection example
Highly integrated and powerful performance
Luckfox Lyra RK3506B Linux Micro Development Board, adopts RK3506B chip
  • Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single- and double-precision floating-point operations
  • Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
  • Supports DDR2 / DDR3 / DDR3L memory interface expansion, meeting various expansion needs
  • The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
  • Built-in audio and video codec, supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions
Easier to develop

Integrates DSI interface, USB-A port, Ethernet port, and speaker header, etc.

Luckfox Lyra RK3506B Linux Micro Development Board, integrates DSI interface, USB-A port, Ethernet port, and speaker header
WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Luckfox Lyra Ultra series, onboard WiFi 6 and Bluetooth module
Reserved PoE Module Header

More Flexible for Power Supply

Luckfox Lyra Ultra series, optional for PoE Module Luckfox Lyra Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

Luckfox Lyra Ultra RK3506B Linux Micro Development Board, onboard MIPI DSI 2-lane interface

* Supports up to 1280 × 800 @ 60Hz resolution.

Rockchip Matrix IO design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Luckfox Lyra Ultra RK3506B Linux Micro Development Board, adopts Rockchip Matrix IO design
Suitable for more application examples
Luckfox Lyra Ultra RK3506B Linux Micro Development Board, suitable for more application examples

Pin definition
Luckfox Lyra Ultra RK3506B Linux Micro Development Board, pin definition

What's On Board
Luckfox Lyra Ultra RK3506B Linux Micro Development Board, onboard components
  1. Type-C connector
    for power supply and program burning
  2. USER-LED
    for indicating system operation status in the default image, programmable indicator
  3. BOOT button
    Press it when powering on or resetting to enter download mode
  4. RESET button
  5. GPIO header
  6. RTC battery connector
  7. Antenna connector
  8. WIFI/Bluetooth module
    2.4G WiFi 6; BT5.2/BLE Bluetooth module
  9. USB-A port
  10. RJ45 100M Ethernet port
  11. Speaker header
    MX1.25 2P connector, supports 8Ω 1W speaker
  1. MX1.25 4P USB header
    Supports conversion to USB-A interface (only available on versions with Wi-Fi module)
  2. DSI display interface
    MIPI DSI 2-lane
  3. 512MB DDR3L
  4. RK3506B
    Multi-core heterogeneous SoC with tri-core ARM Cortex-A7 + ARM Cortex-M0
  5. PoE module / external power supply header
    for connecting external 5V power supply or PoE module power supply
  6. PoE module header
  7. CH334F
    USB HUB chip
  8. CH182H2
    100 Mbps Ethernet PHY chip
  9. 8GB EMMC
outline dimensions
Luckfox Lyra Ultra RK3506B Linux Micro Development Board, outline dimensions
