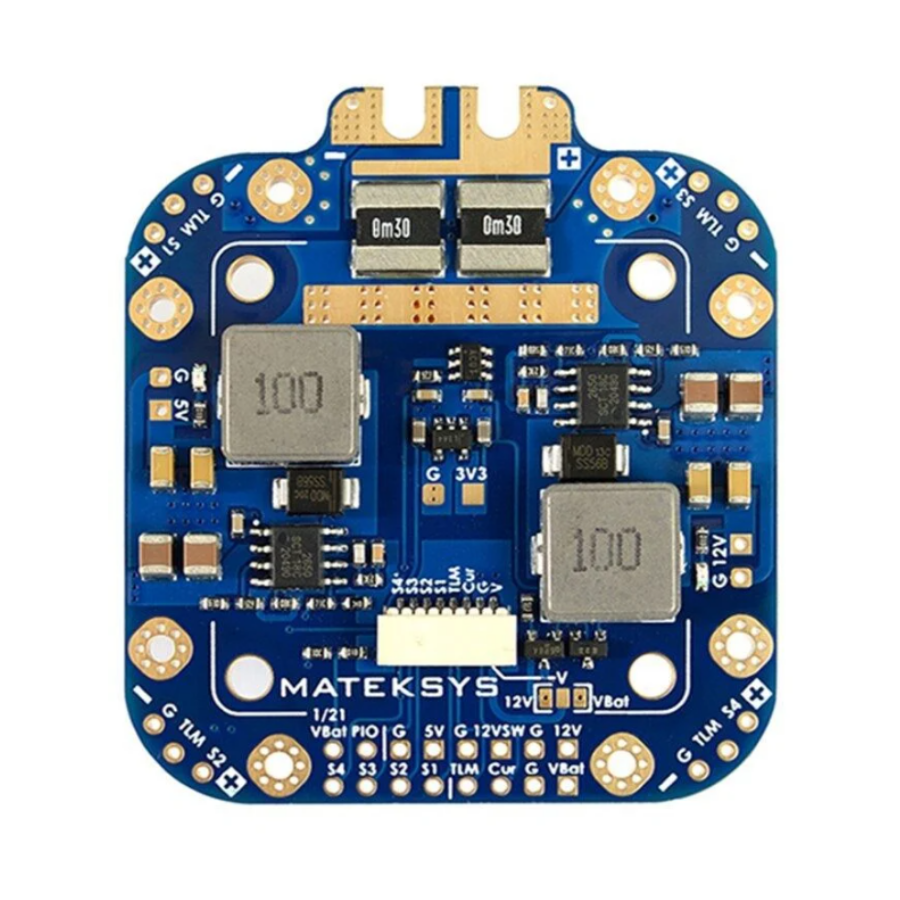

MATEK Mateksys FCHUB-12S 5V&12V 440A V2

                 MATEK Mateksys FCHUB-12S 5V&12V 440A V2

   RC Drone için Matek System XCLASS Uçuş Kontrolcüsü ve HUB-12S PDB Kartı (Akım Sensörlü, 5V & 12V Çıkışlı, 3-12S LiPo Destekli

      MATEK Mateksys FCHUB-12S 5V&12V 440A V2  Özellikleri;

• Brand Name: Matek System
• Model: Flight ControllerHUB-12S
• Mounting: 30.5 x 30.5mm (M3)
• Dimensions: 55 x 50 x 6 mm
• Weight: 21g

• Input Voltage: 8-90V (3-12S Lipo)
• 4x70A cont, 4x110A burst
• 4x ESC power /signal/ telemetry pads
• Current Senor: 440A, 3.3V ADC, Scale 75
• 2x LED indicators for 5V, 12V

• Compatible with MATEKSYS Flight Controller F405-STD, F722-STD
• VTX: Video Transmitter signal
• T5 & R5: TX5 and RX5 of F405-STD/F722-STD

• Voltage: 5.0 +/- 0.1VDC
• Continuous current 5 Amps, Max.6A
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

• Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
• Continuous current 4 Amps, Max.5A
• Input voltage<12V, Output voltage = Input voltage
• Probably there is audible sound in the BEC12V inductor when Input voltage<12V
• Short-circuit tolerant (2 seconds)
• Overcurrent protection & self-recovery

• 12V ON/OFF can be switched via PINIO
• can be use for powering VTX,LED etc.
• BEC 3.3V output
• Linear Regulator
• Continuous current: 500mA
• BEC 3.3V output
• Linear Regulator
• Continuous current: 500mA
